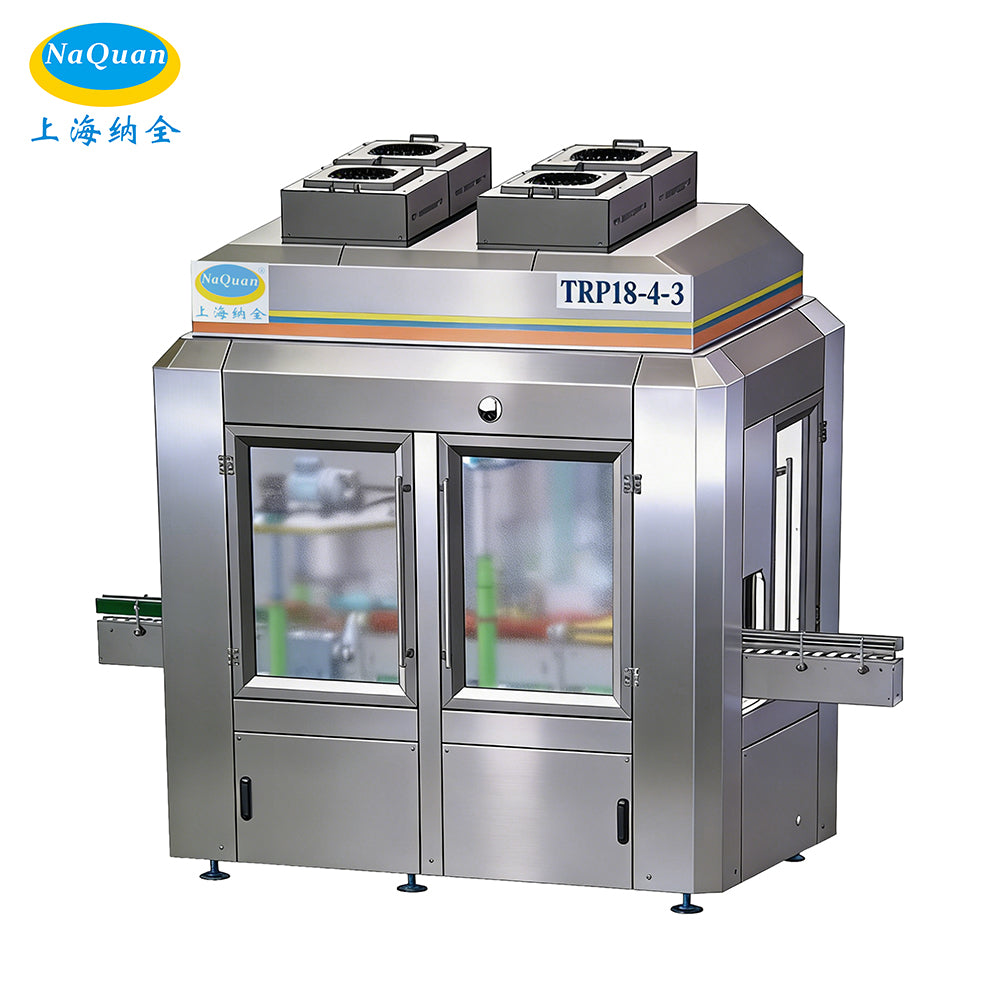

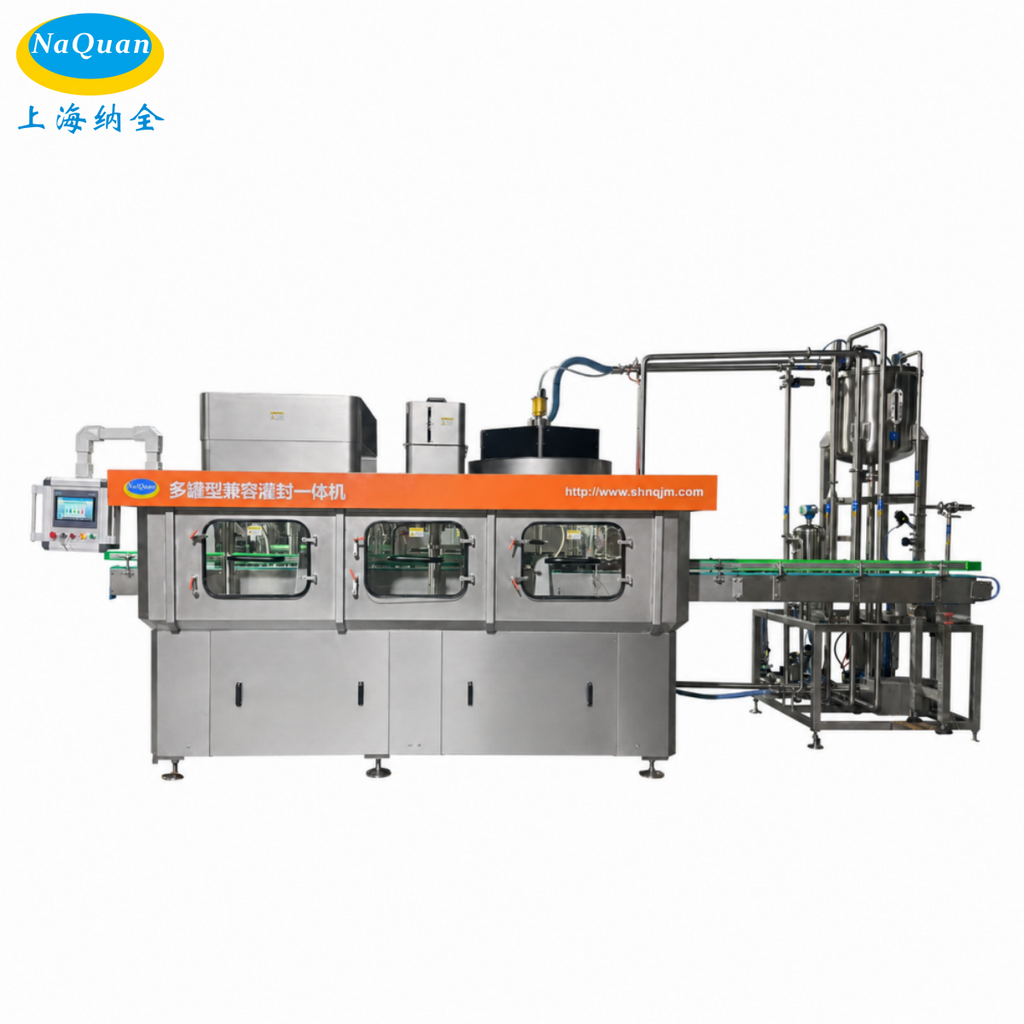

TRP18 Head Filling And Capping Integrated Machine (Compatible Model)

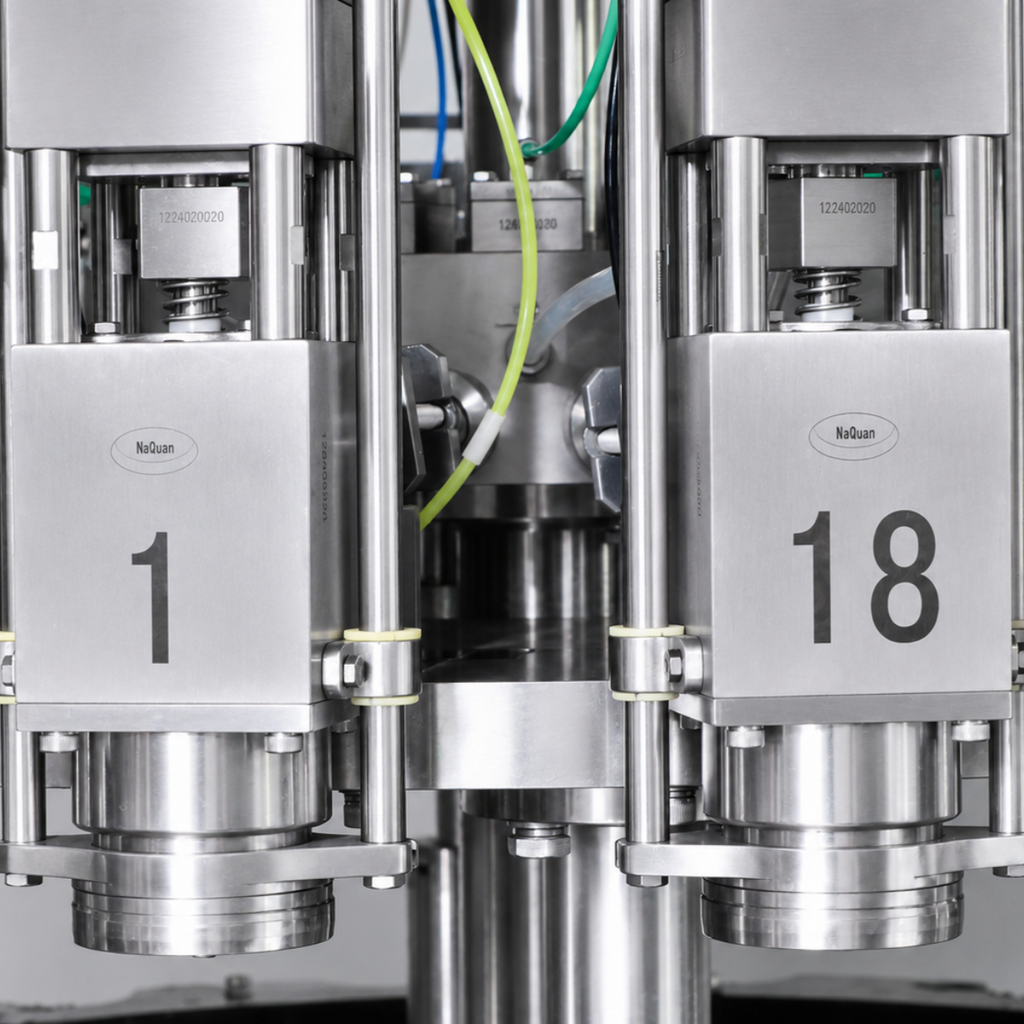

This machine is a multi-tank compatible filling and sealing unit with a production capacity of 4000-8000 CPH. It can be customized according to the actual bottle type of the customer. Through high-precision electronic filling valves, CO₂ is injected into the containers to fully replace the oxygen inside the containers, achieving precise and equal pressure filling. During the filling process, there is less foaming, low oxygen increase, and the taste of the beer is guaranteed. This machine is specifically used for the filling of carbonated liquids such as craft beers and carbonated beverages.
Main Technical Parameters:
| product model | TRP18-4-3 | TRP18-4B | TRP18-3C |
| production capacity | 4000-8000CPH | 6000-7000CPH | 7000-8000CPH |
| filling head | 18 | 18 | 18 |
| Sealing head | 3 sealing head, 4 cover head | 4 | 3 |
| Adaptation of can type | Cans, tin cans, glass bottles | tin cans, glass bottles | Cans |
| Applicable cover shape | 202Lid, crown lid / side pull ring lid, top pull ring aluminum lid | Crown cap / Side pull ring cap, Top pull ring aluminum cap | 202 easy open end |
| Machine weight | 5T | 5T | 5T |
| Machine size | 3000*2020*2400MM | 3000*2020*2400MM | 3000*2020*2400MM |
| Main motor power | 5.5kw | 5.5kw | 5.5KW |
