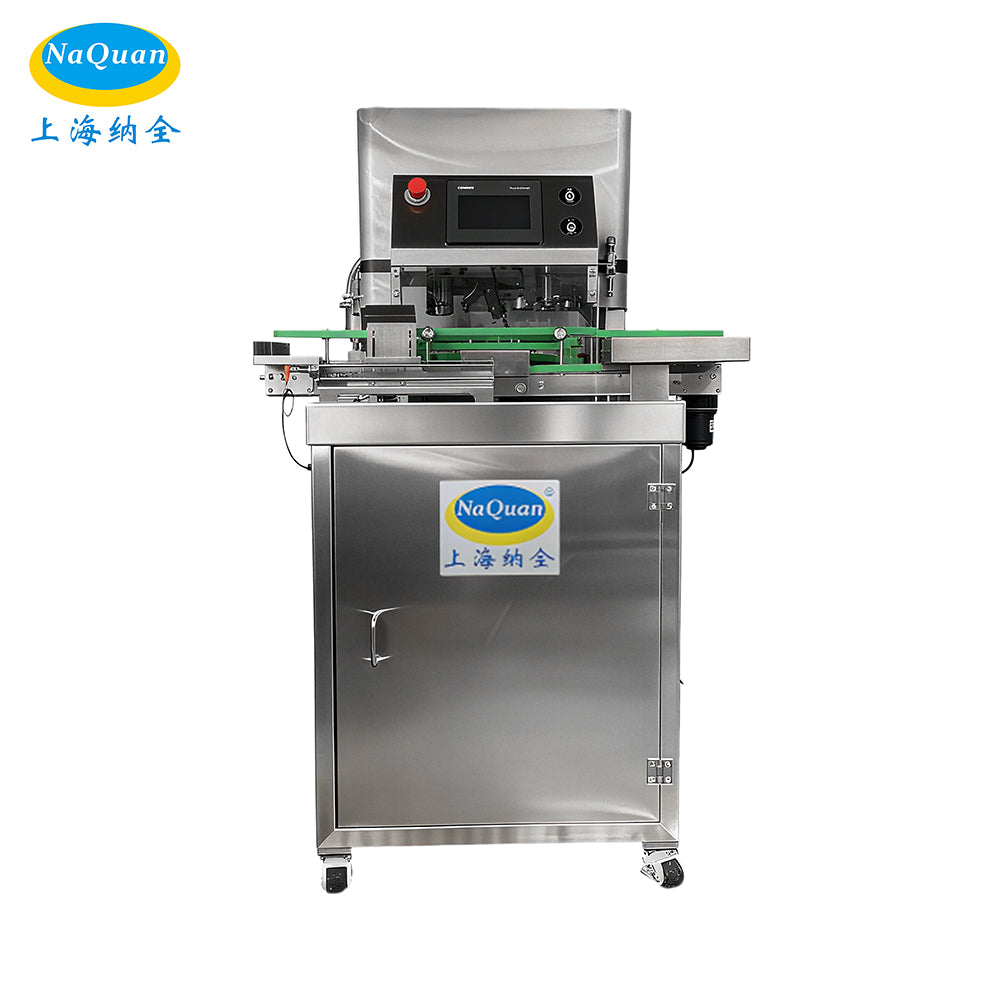

TRP1-1 Mobile Fillng And Sealing Integrated Machine

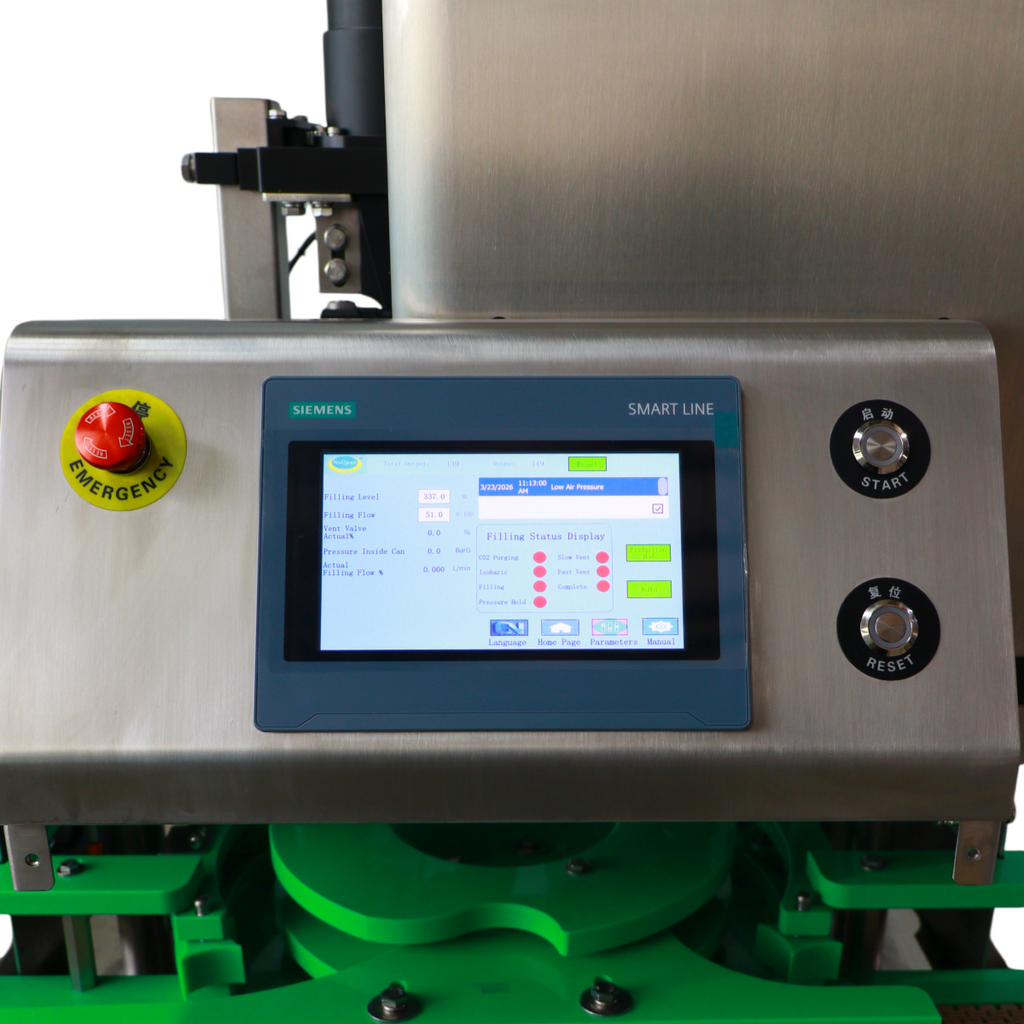

This product is a mobile one-stop filling machine. It performs equal-pressure filling under a sealed state. The machine is equipped with functions such as automatic can feeding, can washing, can blowing, CO₂ displacement, filling, foaming, automatic cap dropping, sealing, and can body rinsing. It adopts high-precision fully electronic filling valves, PLC automatic control for filling, and CIP automatic cleaning, with a one-button lifting and model changing function. By filling CO₂ into the aluminum can containers, the oxygen in the cans is fully displaced, reducing foaming and oxygen intake during the filling process and ensuring the taste of the beer. This machine is used for filling carbonated beverages such as craft beer and carbonated drinks.
main technical parameters：
| Product model | TRP1-1C | TRP1-1B |
| Production capacity | 200-300CPH | 80-150CPH |
| Filling head | 1 filling head | 1 filling head |
| Sealing head | 1 sealing head | 1 sealing head |
| Adaptation of can type | Pop can | Aluminum cans, glass bottles |
| Applicable cover shape | 202 easy open end | Crown cap / Side pull ring cap, Top pull ring aluminum cap |
| Machine weight | about 200kg | about 200kg |
| Machine size | 1100*950*1700MM | 1100*950*1700MM |
| Main motor power | 0.5KW | 0.5KW |
